RSD Motorized Copy Stand

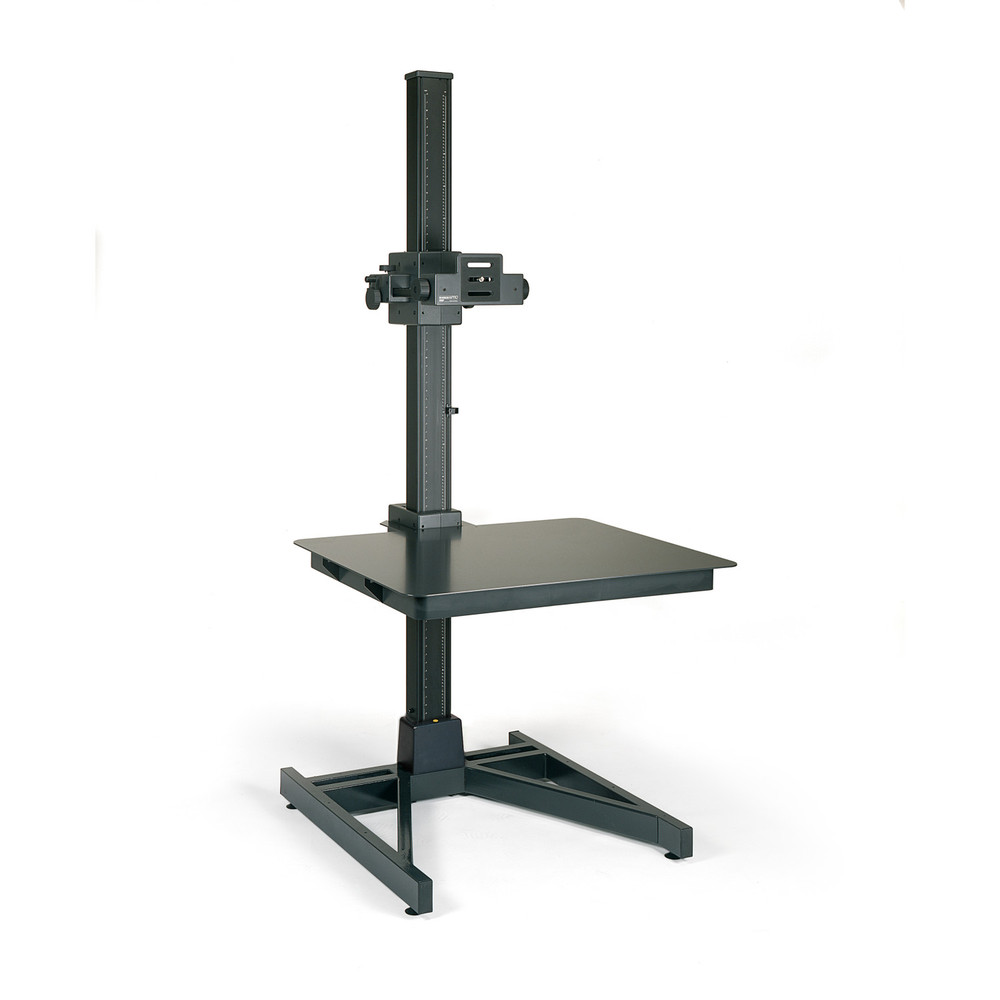

Kaiser RSD Motorized Adjustable Copy Stand
Matte black anodized aluminum tubing column with inch/cm scales. Aluminum camera horizontally adjustable by approximately 6.3 in/16 cm with rack-and-pinion parallel guides. Left hand/right hand operation. Two blocking screws prevent unintended position change. Camera mounting plate tiltable by 180°. Connecting screw horizontally adjustable. Two-speed motorized height adjustment with cable remote control. Constant adjustment speed, independent of load. Photo sensor automatic stop switch. Non-reflective matte gray base board with printed fine grid. Height-adjustable feet. Spirit level. Interchangeable threaded 1/4” and 3/8” bushing.

Base Board Dimensions (in):

26.8x22.4x1.5

Base Board Dimensions (mm):

680x570x38

Base Board Type:

Gridded, non-reflective, matte gray

Bushing Thread Mount (in):

1/4"-20, 3/8"-16

Camera Arm Type:

Rack-and-Pinion

Column Cross Section (in):

4.1x2.9

Column Cross Section (mm):

105x74

Column Height (in):

47.2

Column Height (cm):

120

Horizontally Shiftable:

yes

Maximum Payload Capacity (lb):

17.6

Maximum Payload Capacity (kg):

8

Original Width for focal length (in/cm) 100 mm:

11.8/30

Original Width for focal length (in/cm) 50 mm:

23.6/60

Product Depth (in):

22.44

Product Depth (cm):

57

Product Height (in):

48.82

Product Height (cm):

48.82

Product Length (cm):

0.01

Product Weight (lb):

65.04

Product Weight (kg):

29.5

Range of Tilt From Vertical (degrees):

90

Tiltable:

yes

Vertical Arm Height (in):

50

Vertical Arm Height (cm):

127

Warranty:

2 Year
