RSD Copy Stand (Non-Motorized)

SKU: 205602 | FREE U.S. shipping on all orders over $50!

$2,788.97
  • Kaiser RSD Manually Adjustable Copy Stand Matte black anodized aluminum tubing column with inch/cm scales.
  • Aluminum camera horizontally adjustable by approximately 6.3in/16 cm with rack-and-pinion parallel guides.
  • Left hand/right hand operation.
  • Two blocking screws prevent unintended position change.
  • Camera mounting plate tiltable by 180°.

Overview

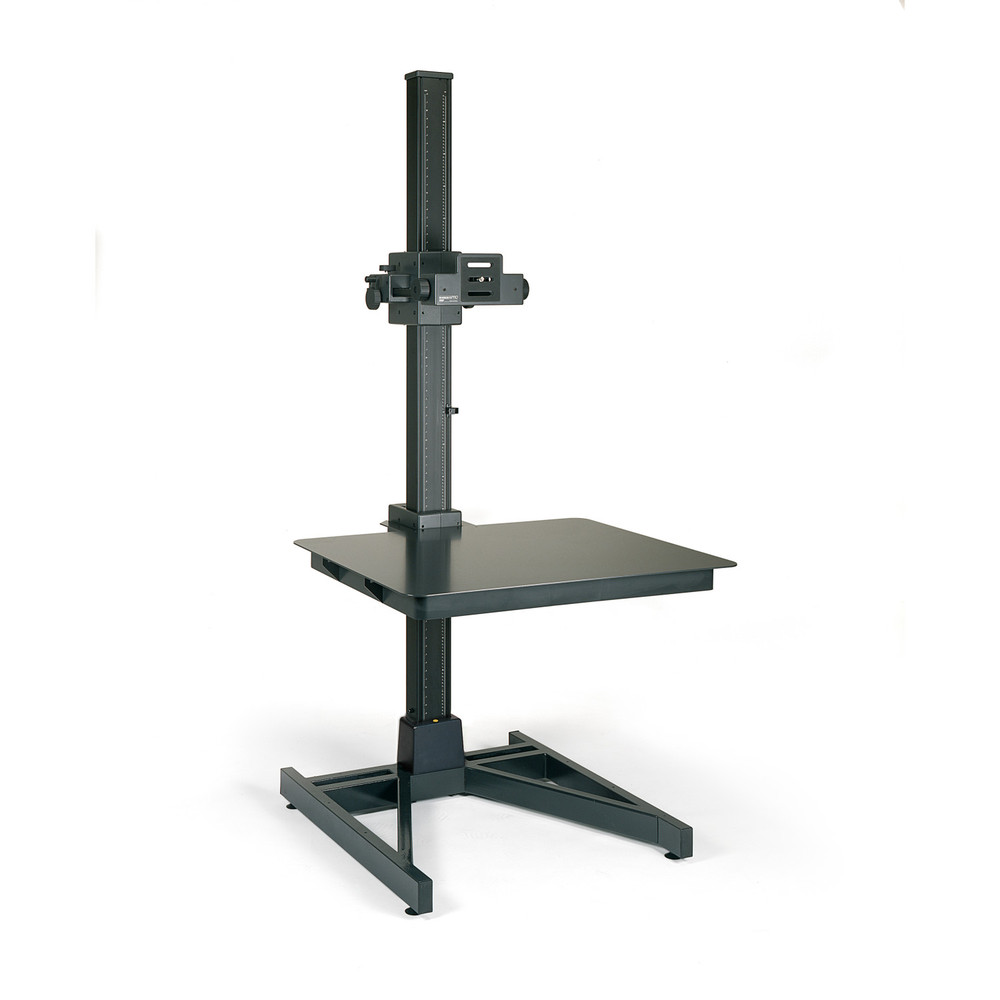

Kaiser RSD Manually Adjustable Copy Stand
Matte black anodized aluminum tubing column with inch/cm scales. Aluminum camera horizontally adjustable by approximately 6.3in/16 cm with rack-and-pinion parallel guides. Left hand/right hand operation. Two blocking screws prevent unintended position change. Camera mounting plate tiltable by 180°. Connecting screw horizontally adjustable. Smooth action manual height adjustment counter-balanced by a built-in coil spring. Non-reflective matte gray base board with printed fine grid. Height-adjustable feet. Spirit level. Interchangeable threaded 1/4” and 3/8” bushing.

Specifications

Base Board Dimensions (in):
26.8x22.4x1.5
Base Board Dimensions (mm):
680x570x38
Base Board Type:
Gridded, non-reflective, matte gray
Bushing Thread Mount (in):
1/4"-20, 3/8"-16
Camera Arm Type:
Rack-and-Pinion
Column Cross Section (in):
4.1x2.9
Column Cross Section (mm):
105x74
Column Height (in):
47.2
Column Height (cm):
120
Horizontally Shiftable:
yes
Horizontal Arm Length (in):
2.4 - 8.7
Horizontal Arm Length (cm):
6.0 - 22.0
Maximum Payload Capacity (lb):
17.6
Maximum Payload Capacity (kg):
8
Original Width for focal length (in/cm) 100 mm:
11.8/30
Original Width for focal length (in/cm) 50 mm:
23.6/60
Product Depth (in):
22.44
Product Depth (cm):
57
Product Height (in):
48.82
Product Height (cm):
48.82
Product Length (cm):
0.01
Product Weight (lb):
63.93
Product Weight (kg):
29
Range of Tilt From Vertical (degrees):
90
Tiltable:
yes
Vertical Arm Height (in):
50
Vertical Arm Height (cm):
127
Warranty:
2 Year
