Kaiser "RSP 2motion" Copy Stand
Heavy-duty copy stand for analog and digital image capturing work with two-level motor-driven adjustment. Accepts originals up to 39.4x31.5 in/100x80 cm. Extremely sturdy, multi-section, special extrusion black anodized aluminum column with printed inch/cm scales. Double-strutted steel tube column foot. Steel socket for bolting the column. Four leveling feet. 4 mm aluminum detachable base board with stabilizing substructure.
Die-cast aluminum camera carrier, horizontally adjustable by parallel guides with friction drive and hand cranks for right-hand/left-hand operation. Two blocking screws. Camera mounting plate tiltable by 180°. Built-in spirit level.
Camera carrier and base board with individual motorized height adjustment. Two travel speeds, independent of load. Self-limiting worm gear for precise positioning at any height. Magnetic sensor automatic stop switch. Anti-collision tool. Cable remote control. Maximum working span: 63 in/160 cm. Interchangeable threaded 1/4” and 3/8” bushing.
Base Board Dimensions (in): 39.4x31.5
Base Board Dimensions (mm): 1000x800
Base Board Type: 4 mm Aluminum with stabilizing substructure
Bushing Thread Mount: 1/4"-20, 3/8"-16
Camera Platform (in): 5.1x5.1
Camera Platform (cm): 13x13
Column Cross Section (in): 4.7x3.1
Column Cross Section (mm): 120x80
Column Height (in): 85.0 (total working span: 63.0)
Column Height (cm): 216 (total working span: 160)
Continuously Adjustable Height: yes
Hoizontally Shiftable: yes
Illuminated Area Dimensions (in): 39.4x31.5
Illuminated Area Dimensions (cm): 100x80
Maximum Payload Capacity (lb): On Camera Carrier: 22
On Base Board: 33
Maximum Payload Capacity (kg): On Camera Carrier: 10
On Base Board: 15
Object Size (in): 39.4x31.5
Object Size (cm): 100x80
Original Width for focal length (in/cm) 100 mm: 19.7/50
Original Width for focal length (in/cm) 50 mm: 39.4/100

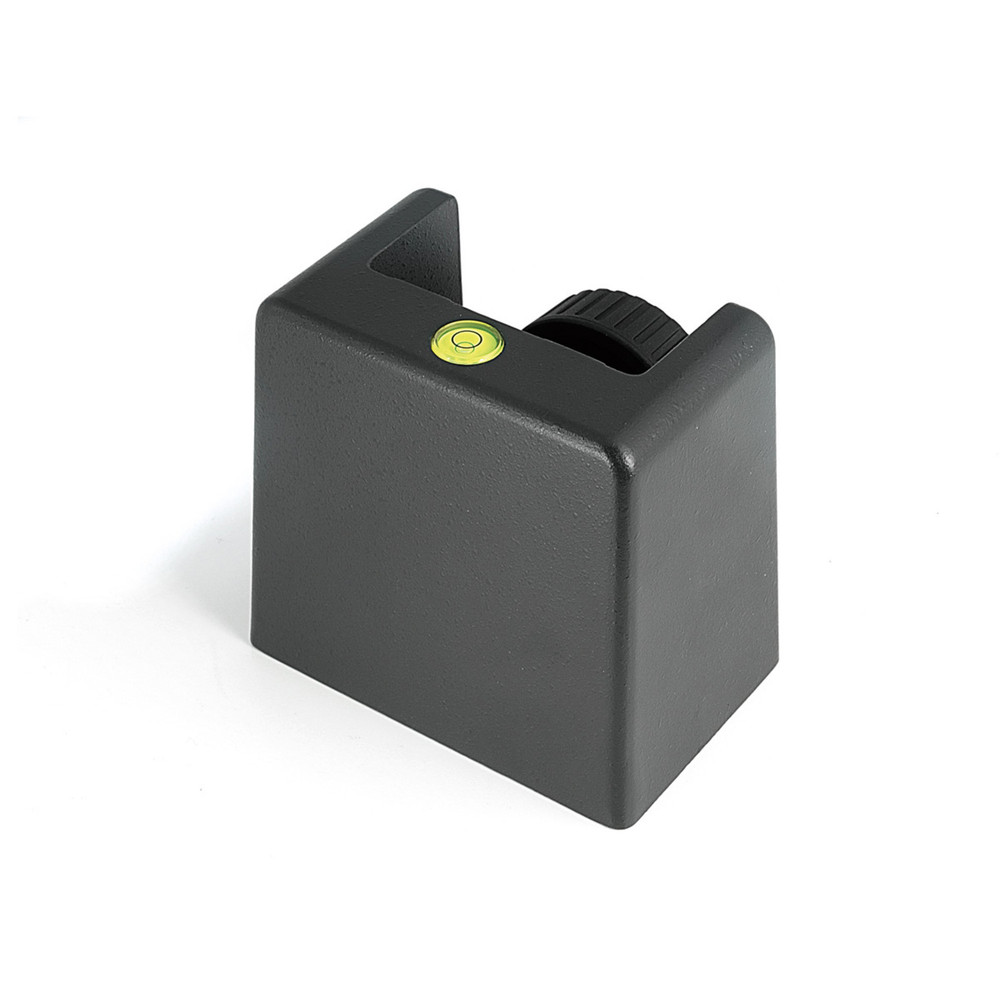

Kaiser Column Base
