"RSP Xtra" Copy Stand

SKU: 205711 | FREE U.S. shipping on all orders over $50!

$10,666.50
  • Kaiser "RSP Xtra“ Copy Stand Heavy-duty copy stand for analog and digital image capturing work with two-level motor-driven adjustment.
  • Camera carrier made of die-cast aluminium, horizontally adjustable by parallel guides with friction drive and hand cranks for right-hand/left-hand operation
  • Extremely sturdy, multi-section, special extrusion black anodized aluminum column with printed inch/cm scales.
  • Camera mounting plate tiltable by 180°.
  • Self-limiting worm gear for precise positioning at any height

Overview

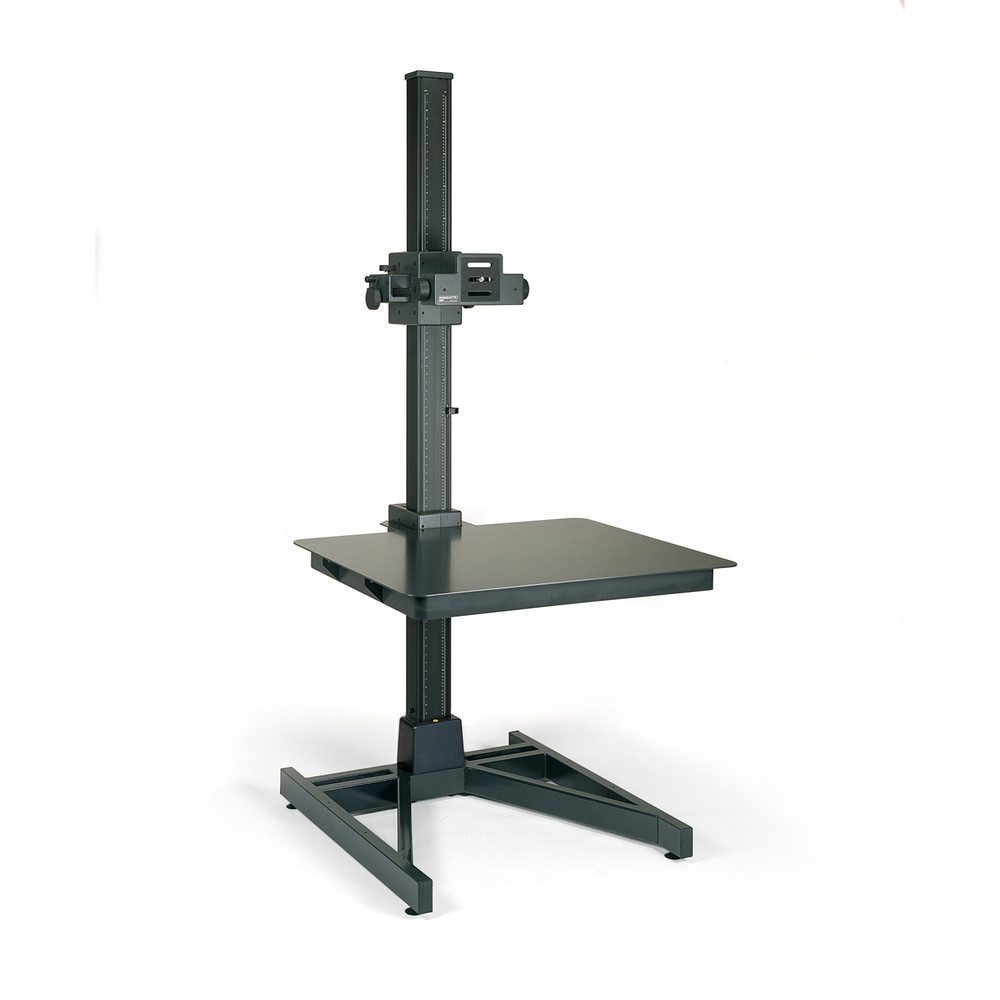

Kaiser "RSP Xtra“ Copy Stand
Heavy-duty copy stand for analog and digital image capturing work with two-level motor-driven adjustment. Accepts originals up to 39.4x31.5 cm/100x80 cm. Extremely sturdy, multi-section, special extrusion black anodized aluminum column with printed inch/cm scales. Double-strutted steel tube column foot. Steel socket for bolting the column. Four leveling feet.

Die-cast aluminum camera carrier, horizontally adjustable by parallel guides with friction drive and hand cranks for right-hand/left-hand operation. Two blocking screws. Camera mounting plate tiltable by 180°. Built-in spirit level.
Camera carrier with motorized height adjustment. Two travel speeds, independent of load. Self-limiting worm gear for precise positioning at any height. Magnetic sensor automatic stop switch. Anti-collision tool. Cable remote control.

Stand is supplied without base board, intended to be used with Table for Copying Works (205712), with Table (205630) or custom-made equipment.
Interchangeable threaded 1/4” and 3/8” bushing.

Specifications

Bushing Thread Mount (in):
1/4"-20, 3/8"-16
Column Cross Section (in):
4.7x3.1
Column Cross Section (mm):
120x80
Horizontally Shiftable:
yes
Maximum Payload Capacity (lb):
33
Maximum Payload Capacity (kg):
15
Product Depth (in):
44.88
Product Depth (cm):
114
Product Height (in):
89.37
Product Height (cm):
89.37
Product Length (cm):
0.01
Product Weight (lb):
194.01
Product Weight (kg):
88
Range of Tilt From Vertical (degrees):
90
Tiltable:
yes
Warranty:
2 Year
